Finding your suitable dc driver motor is not easy. You may need consider between hundred or thousand products from many store. In this article, we make a short list of the best dc driver motor including detail information and customer reviews. Let’s find out which is your favorite one.
Reviews
1. L298N H-bridge Motor Controller, DROK L298N Motor Driver Board DC Dual H Bridge Robot Stepper Motor Regulator and Drives Module for Arduino Smart Car Power UNO MEGA R3 Mega2560 Duemilanove
Feature
DROK L298N h-bridge motor controller working mode creates higher working efficiency, L298N as main chip, ST corporation production. Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage.
Use large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability.
Our motor regulator board drive voltage is 5V-35V, drive current is 2A, max power is 25W.
Large capacity filter capacitance, afterflow protection diode, more stable and reliable.
Description
Parameter:
Chip: L298N
Logic voltage: 5V
Logic current 0mA-36mA
Storage Temperature: -20 to to +135
Operating mode: H-bridge driver (dual)
Drive voltage: 5V-35V
Drive current: 2A (MAX single bridge)
Maximum power: 25W
Dimensions: 43x43x27mm
Product features:
1.L298N as main driver chip makes strong driving ability/small heating/strong anti-interference
2.Use large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability
3.This moduel integrated with one internal 5V power supply, meaning when your driving voltage is 7V-35V,it makes 5V of energy board power supply logically; when 5V of energy board power on, please not input voltage to +5V power supply in interface but you can lead 5V voltage for external usage
Eg: ENA enable IN1 IN2 to control OUT1 OUT2
ENB enable IN3 IN4 to control OUT3 OUT4
Package includes:
1x L298N Module
2. DC Motor Driver, DROK L298 Dual H Bridge Motor Speed Controller DC 6.5V-27V 7A PWM Motor Regulator Board 12V 24V Electric Motor Control Module Industrial 160W with Optocoupler Isolation
Feature
DROK DC motor driver input voltage range is DC 6.5V-27V, can be input DC 12V or 24V, rated output current of each port is 7A, total output power is 160W.STRONG DRIVE: the motor controller board adopts dual H bridge, can drive two DC motors at the same time.
FORWARD and REVSERSELY ROTATE: the IN1, IN2/IN3, IN4 port can control forward or reverse motor rotation.
PWM SPEED CONTROL: enable signal terminal (ENA) input PWM can regulate speed, PWM frequency range 0-10KHZ.
UNDER VOLTAGE PROTECTION: the motor driver module is with under voltage protection to prevent instantaneous large current from damaging the module.
Description
Parameters:1. Power supply voltage 6.5V-27V, the power cannot be reversed or over 27V, or may burn the module, it is recommended connecting in series 15A fuse in the power input.
2. Dual motor interface, each rated output current 7A, peak current 50A, the motor interface cannot short-circuit, it is recommended connecting in series 15A fuse.
3. The enable signal and forward and reverse control signal control voltage 3-6.5V.
4. Enable signal terminal (ENA) input PWM can regulate speed, PWM frequency range 0-10KHZ, PWM minimum pulse width 10us.
5. Product dimension: 55x55x16mm
6. Installation hole diameter: 3mm, noted to prevent short circuit when install the reverse side, you can add insulation pad or copper column to raise the circuit board
Parameters matched:
Motors with rated voltage 24V, identification of rated power 115W or below, and motors with identification of rated current 7A can full work for a long time.
Note:
1. Drive power cannot be reversed, it is recommended connecting in series 15A fuse in the power interface, the voltage should be between 6.5 - 27V. If over voltage, it may burn the drive module if power on.
2. It is recommended that the rated output current of the power supply be more than 2 times, in case the power supply voltage cannot reach the required input voltage of the motor when it is started, which may cause pause of the drive module for under voltage protection.
3. Motor interface cannot be short-circuit, or may burn the drive module, it is recommended connecting in series 10A fuse in the motor interface.
Package Including:
1x DC Motor Driver Board
3. Aideepen 5pcs 1.5A 2 Way DC Motor Driver Module Speed Dual H-Bridge Replace Stepper L298N
Feature
Use of imported original chip, built-in low on-resistance MOS switchDual H-bridge motor driver, can drive two DC motors or a 4-wire two-phase stepper motor
Dual 1.5A * 2, the peak current to be 2.5A, built-in thermal protection circuit, do not be afraid motor stall burned, automatic recovery after the temperature dropped
Minimal heat, no heat sink, small size, low power consumption, is ideal for battery powered
Small size, light weight, 0 standby current, is the ideal choice for your car model
Description
Description:Motor drive module is ideal for use in battery-powered smart car, toy cars, robots.
Supply voltage 2V ~ 10V, can drive two DC motors or a 4-wire 2-phase stepper motors ,can achieve forward rotation or reverse rotation, it is possible to adjust the rotation speed.
Each can provide continuous current of 1.5A, peak current up to 2.5A, thermal protection and can be automatically restored.
Product parameters:
The module supply voltage 2V-10V.
Signal input voltage 1.8-7V.
Single Operating current 1.5A, peak current up to 2.5A, low standby current (less than 0.1uA).
Built-in common conduction circuit, when the input pin is left floating, the motor does not malfunction.
Built-in thermal protection circuit with hysteresis effects (TSD), without worrying about motor stall.
Product size: 24.7 * 21 * 5mm (length, width, height), ultra-small size.
The mounting hole diameter: 2 mm.
Precautions:
1. Power positive and negative reversed will certainly cause damage to the circuit.
2. Output is shorted to ground or output short circuit, and the motor stall, the chip will heat protection, but in the near or exceeding 10V voltage and peak current is greater than 2.5A situation can also cause chip burned.
Package Included:
5* Motor drive module

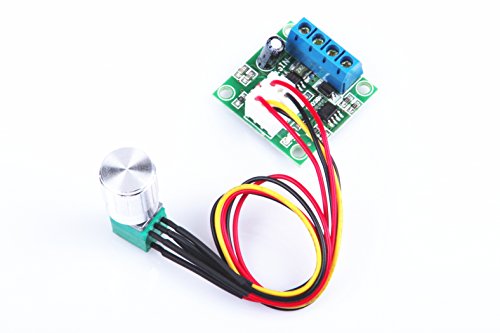

4. KNACRO 1803BKW 1.8V/3V/5V/6V/7.2V/12V 2A 30W DC Motor Speed Controller (PWM) Adjustable Driver Switch
Feature
Input supply voltage: 1.8V-15VDC.The maximum output power: 30W.
The maximum continuous output current :2A.
Duty Cycle adjustable: 5%-100%potentiometer with switch function.
Item size: 1.3*1.3*0.6 inches ; Net Weight:20g.
Description
Input supply voltage: 1.8V-15VDC.The maximum output power: 30W.
The maximum continuous output current :2A.
Duty Cycle adjustable: 5%-100%potentiometer with switch function.
Item size: 1.3*1.3*0.6 inches ; Net Weight:20g.
Features:
1803BKW DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
The input power range is DC 1.8-15V .
Use a 2A resettable fuse to protect the controller.
Potentiometer cable length 20cm.
Weight:20g.
Operating instruction:
Before you attempting to wire the controller, make sure power is off.
WARNING: TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
1. Connect wires refer to the "wiring diagram" (NO.5 picture).
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.
Package Including:
1 x DC Motor Speed Controller
5. Qunqi L298N Motor Drive Controller Board Module Dual H Bridge DC Stepper For Arduino
Feature
Dual-channel H-bridge driver working mode creates higher working efficiency,L298N as main chip, ST corporation production.Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage
Use large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability
High working power to 46v,large current can reach 3A MAX and continue current is 2A, power to 25w.
Large capacity filter capacitance,afterflow protection diode, more stable and reliable.
Description
Specification:Chip: L298N
Logic voltage: 5V
Logic current 0mA-36mA
Storage Temperature: -20 to to +135
Operating mode: H-bridge driver (dual)
Drive voltage: 5V-35V
Drive current: 2A (MAX single bridge)
Maximum power: 25W
Dimensions: 43x43x27mm
Package include:
1x L298N Module
Note:
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply
DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.
When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN4 control OUT3 OUT4

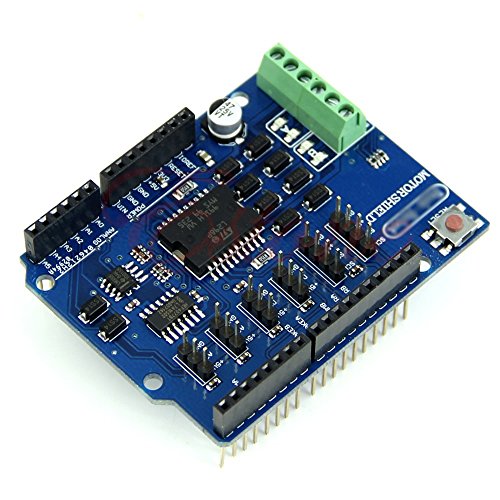

6. L298P Shield R3 DC Motor Driver Module 2A H-Bridge 2 way For Arduino UNO 2560 NW
Feature
Ship From Balance worldOperating Voltage 5V to 12V
Motor controller L298P, Drives 2 DC motors or 1 stepper motor
Max current 2A per channel or 4A max (with external power supply)
More detail see description
Description
The Motor Shield is based on the L298 , which is a dual full-bridge driver designed to drive inductive loads such as relays, solenoids, DC and stepping motors. It lets you drive two DC motors with your board, controlling the speed and direction of each one independently. You can also measure the motor current absorption of each motor, among other features. Operating Voltage 5V to 12V Motor controller L298P, Drives 2 DC motors or 1 stepper motor Max current 2A per channel or 4A max (with external power supply) Current sensing 1.65V/A Free running stop and brake function Click me to konw more Package Included: 1PCS*L298P Shield R3 DC Motor Driver Module 2A H-Bridge 2 way For Arduino UNO 2560 NW7. Adafruit (PID 3297) DRV8833 DC/Stepper Motor Driver Breakout Board
Feature
DRV8833 motor driver chipSpin two DC motors or step one bi-polar or uni-polar stepper with up to 1.2A per channel
2 full H-bridges
2.7V to 10.8V motor power
DRV8833 an handle a peak of 2A, but only for a short amount of time
Description
Spin two DC motors or step one bi-polar or uni-polar stepper with up to 1.2A per channel using the DRV8833. This motor driver chip is a nice alternative to the TB6612 driver. Like that chip, you get 2 full H-bridges, but this chip is better for low voltage uses (can run from 2.7V up to 10.8V motor power) and has built in current limiting capability. We set it up for 1A current limiting so you don't get more than 2A per chip, but you can also disable the current limiting, or change it to a different limit!We solder on DRV8833 onto a breakout board for you here, with a polarity protection FET on the motor voltage input. Each breakout chip contains two full H-bridges (four half H-bridges). That means you can drive two DC motors bi-directionally, or one stepper motor. Just make sure they're good for about 1.2 Amp or less of current, since that's the limit of this chip. They do handle a peak of 2A but that's just for a short amount of time, if you turn off the current limiting we set. What we like most about this particular driver is that it comes with built in kick-back diodes internally so you dont have to worry about the inductive kick damaging your project or driver! You also don't have to worry as much about burning out the chip with overdriving since there is current limiting.
There's two digital inputs per H-bridge (one for each half of the bridge), you can PWM one of the inputs to control motor speed. Runs at 2.7V-10.8V logic/motor power. The motor voltage is the same as the logic voltage, but logic voltage from 2.7V or greater will work so no need to worry if you are powering the motors from 9V and using 3.3V logic. For higher voltages, check out the TB6612. For much higher voltages and currents check out the DRV8871!
Comes as one assembled and tested breakout plus a small strip of header. You'll need to do some light soldering to attach the header onto the breakout PCB. Arduino, motors, and power supply not included.
8. uniquegoods 6V 12V 24V Digital Display LED DC Motor Speed Controller PWM Stepless Speed Control Switch HHO Driver - Black CCM5D
Feature
Input supply voltage: 6V-30VDCPWM frequency: 16kHz; Duty Cycle adjustable: 0%-100%
Item size: 3.1*1.6*0.9 inches ; Net weight: 2.1 ounces
The maximum output power: 240W
The maximum continuous output current :5A;(Peak current 8A),The LED display the duty ratio 0-100%
Description
Features:CCM5D DC Motor Speed Regulator controls the speed of a DC motorby adjusting Pulse-Width-Modulated (PWM).
Large 0.56 inch 3-digit LED display numbers allow viewing under the most adverse conditions.
The display range of 3-digit LED display is "000"-"100". (For example, displayed "066" as the picture 1, it means that the PWM output duty cycle is 66%.)
Adjustable speed range is 0%-100%.
Suitable for the DC motor (or DC load) within 5A, Peak current 8A.
Incorporate a push key. Push closed, and then push open.
Operating instruction:
Before you attempting to wire the controller, make sure power is off.
WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER.
TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
1. Connect wires refer to the "wiring diagram" (NO.6 picture).
2. Turn on the power, and adjust the potentiometer.
3. The LED display displays the PWM output duty cycle.
4. Push the key, the controller closed, push it again, the controller open.
Package Including:
1 x DC Motor Speed Controller
9. uniquegoods H-Bridge DC Dual Motor Driver PWM Module DC 3~36V 15A Peak 30A IRF3205 High Power Control Board for Arduino Robot Smart Car
Feature
Application: Freescale's Smart car, Undergraduate Electronic Design, A variety of DC motor control circuitThe drive uses the full two half-bridge driver chip + low resistance N-channel MOSFET components. Complete two half-bridge driver chip reliable drive mode, the MOSFET switching losses to a minimum. Improve power utilization. MOSFET driver chip comes with hardware brake function and power feedback.
N-channel MOSFET IRF3205 MOSFET, use two dedicated half-bridge driver chip on the top tube using the bootstrap capacitor, so that the tube has enough drive voltage of the MOSFET channel can be opened quickly, improve motor acceleration curvature, but also quickly for the motor brake. This allows the trolley can quickly start can quickly kill the car.
The driver can operate at 0% -99% of the duty cycle of the PWM modulation, the motor driving voltage can be obtained sufficiently.
Dimensions: 4.25" x 2.16" x 0.71", net weight:2.01 oz
Description
Specifications:Motor being transferred: DIR = 1 PWM = PWM
Motor Reverse: DIR = 0 PWM = PWM
Parking brake: DIR = X PWM = 0 (X is an arbitrary state)
Motor and power connections: POWER connected to the positive power supply, GND power supply is negative. Two motors were connected MOTOR1, MOTOR2
Rated voltage: DC 3V~36V
Rated current: 15A
Peak Current: 30A
Package Included:
1 x H-Bridge DC Motor Driver
